550 SERIES SUBSEA TRANSMITTERS FROM PSM

PSM INSTRUMENTATION LTD

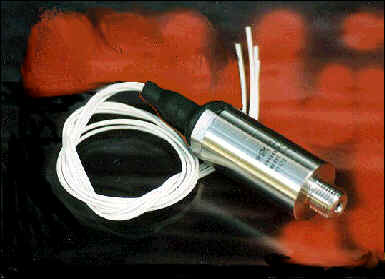

550 SERIES SUBSEA PRESSURE TRANSMITTER

Measurement ranges to 1000 Bar Absolute
Up to 700 Bar ambient pressure
Secondary containment via glass to metal seal
Surface mount PCB for long term stability & reliability
100% redundancy option for critical applications provided by dual independent 4 to 20 mA output
Standard 316L Stainless steel body and diaphragm with other materials available for enhanced chemical resistance
Fully sealed maintenance free design, with factory certified calibration
Traceable 5 point calibration & Hyperbaric testing on request.

PSM 550 series transmitters are custom designed for direct installation to subsea control units.

Applications of this type demand reliability and all units undergo stringent quality and performance related tests during manufacture. All welded joints are leak tested using mass spectometry analysis, each unit is thermally cycled, and following calibration all are run for a 72 hour burn in period. Considered design and quality control provides for the highest possible reliability.

For especially critical applications such as Work-over units the 550 series can be provided with dual 4-20mA outputs This version employs two discrete amplifier circuits to offer 100% redundancy.

Since space is often limited in subsea installations, particular attention has been paid to making the design exceptionally compact, the standard construction is under 100 mm body length with a diameter of only 25.4 mm for both single & dual output sensors.

PSM will be pleased to discuss your requirements for standard or custom design sensors.
