 Series 650 Electrical Indicator
4 to 20 mA 2 wire loop powered

  •  Simple & Reliable

  •  No Setting Up

  •  loop powered

  •  continuous Reading

  •  Marine & Industrially Rugged

  • Stainless Steel construction

  • Custom Marked Dials

  • wall mounting versions Fully Weatherproof



View and download datasheet in PDF format

View and download general outline drawing in PDF format

Send me a datasheet

The 650 series is a rugged and reliable, 4 to 20mA loop powered continuous reading indicator suitable for Marine and Industrial use. The case is manufactured in stainless steel, available wall or flush panel mounting in either 4” or 6” diameter.

The wall mounting versions are fully weatherproof to IP65.

Indicators are scaled and calibrated in volumetric units according to individual tank dimensions in either single or dual scale as required.

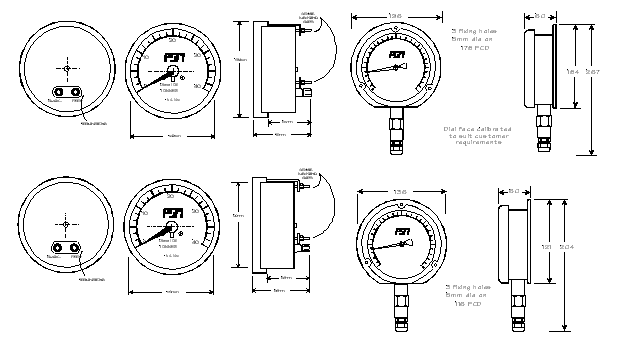

GENERAL OUTLINE DRAWINGS

General Outline Drawing
